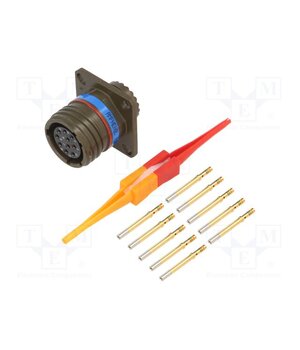

D38999/20WC98SN Connector: military; socket; female; PIN: 10; straight; crimped

• Number of pins — 10
• Current rating — 7.5A
• —
• —
• Connector variant — with contacts
• Connector — socket
• Mechanical mounting — for panel mounting
• Locking system — threaded joint
• Mechanical mounting — flange (4 holes)
• Locking system — external thread
• Conform to the norm — Military Standard
• Enclosure material — aluminium alloy
• —
• Kind of connector — female
• Contact plating — gold-plated
• —
• Case — size 13
• Type of connector — military
• Colour — olive
• Plating material — cadmium
• Wire size — 24AWG...20AWG
• —
• Conform to the norm — MIL-DTL-38999
• Electrical mounting — crimped
• Spatial orientation — straight
• —
