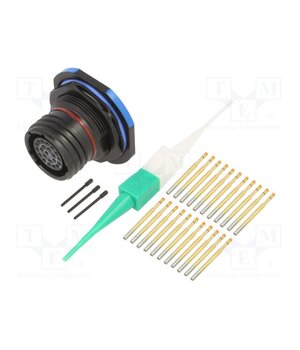

D38999/24ZC35SN Connector: military; socket; female; PIN: 22; straight; crimped

• Number of pins — 22
• Current rating — 5A
• Plating material — zinc
• —
• Mechanical mounting — front side nut
• Connector variant — with contacts
• Connector — socket
• Colour — black
• Mechanical mounting — for panel mounting
• Locking system — threaded joint
• Wire size — 28AWG...22AWG
• Mechanical mounting — screwed
• Locking system — external thread
• Conform to the norm — Military Standard
• —
• Enclosure material — aluminium alloy
• —
• Kind of connector — female
• Contact plating — gold-plated
• —
• —
• Case — size 13
• Type of connector — military
• Plating material — nickel
• —
• Conform to the norm — MIL-DTL-38999
• Electrical mounting — crimped
• Spatial orientation — straight
