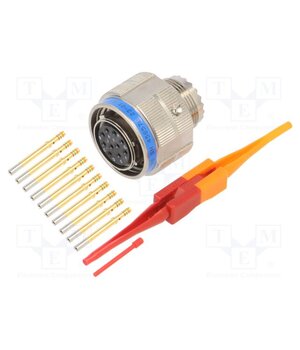

D38999/26FC98SN Connector: military; plug; female; PIN: 10; straight; crimped; 7.5A

• Number of pins — 10
• Current rating — 7.5A
• —
• —
• Connector variant — with contacts
• Mechanical mounting — for cable
• Locking system — internal thread
• Locking system — threaded joint
• Conform to the norm — Military Standard
• Enclosure material — aluminium alloy
• Colour — silver
• —
• Kind of connector — female
• Contact plating — gold-plated
• —
• Case — size 13
• Type of connector — military
• Wire size — 24AWG...20AWG
• Plating material — nickel
• —
• Conform to the norm — MIL-DTL-38999
• Connector — plug
• Electrical mounting — crimped
• Spatial orientation — straight
• —
