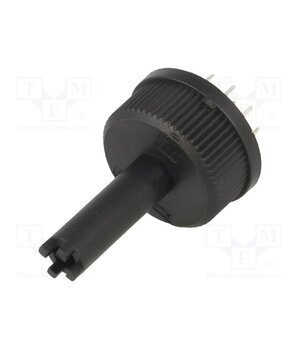

9341900133 Switch: rotary; Pos: 4; 0.13A/150VAC; 0.13A/150VDC; Poles number: 3

• Operating temperature — -30°C…85°C
• Poles number — 3
• Max. contact resistance — 25mΩ
• Shaft diameter — 6mm
• Mechanical durability — 15kcysles
• Min. insulation resistance — 1TΩ
• Manufacturer — AB Elektronik
• Body dimensions — Ø19.4x9.2mm
• —
• Leads — for PCB
• AC contacts rating @R — 0.13A / 150V AC
• Contact plating — silver plated
• —
• Stable positions number — 4
• —
• —
• —
• —
• —
• Contact material — brass
• —
• —
• —
• —
• —
• —
• —
• —
• DC contacts rating @R — 0.13A / 150V DC
• Switch of type — rotary
