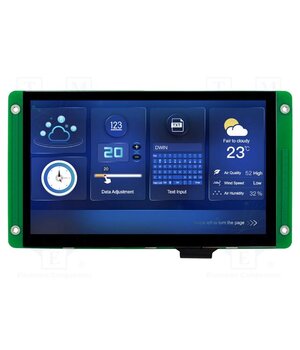

DMG10600T070_09WTC Display: TFT; 7"; 1024x600; Illumin: LED; 32MBFLASH; RGB; 650cd/m2

• Operating temperature — -20°C…70°C
• Supply voltage AC — 9V AC…36V AC
• Supply voltage DC — 9V DC…36V DC
• Kind of display — matrix IPS
• Display resolution — 1024x600
• —
• —
• —
• Kind of controller — T5L2
• Type of pin configuration — 1x8
• —
• Dimensions — 190.5x105.4x13.4mm
• Type of display — TFT
• Memory — 32MB FLASH
• Interface — UART
• —
• Colour — RGB
• —
• Kind of display — graphical
• No. of colours — 16.7M
• Kind of connector — SD
• Interface — RS232
• Interface — CMOS/TTL
• Illumination — LED
• Interface — I2C
• —
• Window dimensions (H x W) — 154.2x85.9mm
• Screen size — 7"
• Interface — 24bit RGB
• Touchpad — capacitive
• Kind of connector — 8pin
• —
