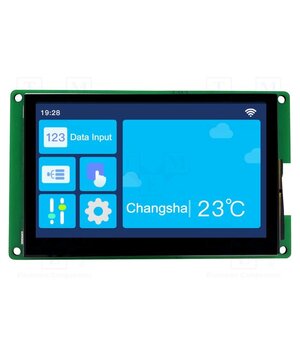

DMG80480T043_01WTC Display: TFT; 4.3"; 480x800; Illumin: LED; 16MBFLASH; RGB; 250cd/m2

• Operating temperature — -20°C…70°C
• Supply voltage DC — 9V DC…36V DC
• Kind of display — matrix IPS
• —
• Window dimensions (H x W) — 93.6x56.16mm
• —
• Kind of controller — T5L0
• —
• Dimensions — 121.92x73.15x14.2mm
• Display resolution — 480x800
• Type of pin configuration — 1x8
• —
• Type of display — TFT
• —
• Interface — UART
• —
• Colour — RGB
• —
• Kind of display — graphical
• Kind of connector — SD
• Screen size — 4.3"
• Interface — RS232
• Interface — CMOS/TTL
• Illumination — LED
• Interface — I2C
• Interface — 18bit RGB
• —
• Interface — SD
• Memory — 16MB FLASH
• Touchpad — capacitive
• Kind of connector — 8pin
• No. of colours — 262k
