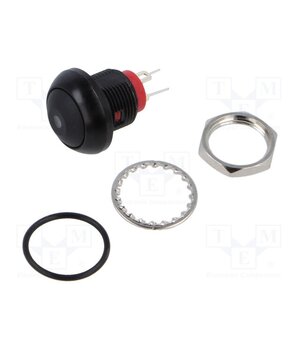

RP8300B2M1CEBLKBLKGRN Switch: push-button; Pos: 2; SPST-NO; 0.2A/50VDC; 0.5A/48VAC; black

• Contacts pitch — 5.08mm
• Operating temperature — -30°C…85°C
• Max. contact resistance — 50mΩ
• Electrical life — 500kcysles
• Key stroke — 0.0015
• Operating Force — 3.5N
• Min. insulation resistance — 1GΩ
• AC contacts rating @R — 0.5A / 48V AC
• Mounting — on panel
• —
• Switch of type — push button
• Illumination — point
• —
• —
• Panel thickness — 1.5...4mm
• —
• Switching method — OFF-(ON)
• Backlight colour — green
• Button marking — blank
• Terminal pitch — 5.08mm
• Body colour — black
• —
• Body dimensions — Ø17.5x8.7mm
• Actuator colour — black
• —
• Illumination — LED
• —
• —
• Contact plating — gold-plated
• Manufacturer — E-SWITCH
• —
• DC contacts rating @R — 0.2A / 50V DC
• Contact material — silver
• Mounting hole diameter — Ø13.6mm
• Contacts configuration — SPST-NO
• Stable positions number — 1
• Button shape — round
• Leads — connectors
• —
