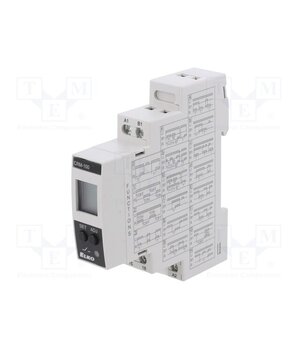

CRM-100 Automation module: timer; Range: 0,1s÷999h; SPDT; 24÷240VAC; IP20

• Supply voltage — 24V…240V
• Supply voltage AC — 24V AC…240V AC
• Operating temperature — -10°C…55°C
• Supply voltage DC — 24V DC…240V DC
• Number of operation modes — 17
• Kind of output — SPDT
• Mounting — for DIN rail mounting
• Output 1 electrical parameters — 250V AC / 8A
• The additional control inputs — START
• —
• Type of module — timer
• IP rating — IP20
• Type of automation module — timer
• —
• Body dimensions — 18.2x85x76mm
• —
• Manufacturer — ELKO EP
• —
• —
• Electrical connection — screw terminals
• —
• Counting range — 0,1s...999h
