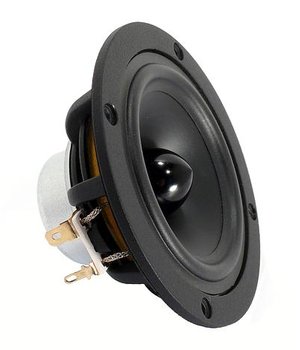

FULLRANGE SPEAKER B80 8Ω VISATON
Code GAVSPB80- Manufacturer VISATON
- ID code 1261
- Weight 395.00g
E-shop price: 95,90 €
| Amount: | 2+ | 4+ |
| Price: | 91,10 | 89,19 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Description
Technical Data
Cm: 0,87 mm/N
Rated power: 30 W
Opening angle (-6 dB): 119°/4000 Hz
Maximum linear displacement: 2,2 mm
Resonance frequency fs: 110 Hz
Magnetic induction: 1,17 T
Magnetic flux: 290 µWb
Height of front pole-plate: 3 mm
Voice coil diameter: 25 mm
Height of winding: 7,5 mm
Cutout diameter: 89 mm
D.C. resistance Rdc: 6,6 Ohm
Mechanical Q factor Qms: 6,53
Electrical Q factor Qes: 0,69
Total Q factor Qts: 0,63
Equivalent volume Vas: 1,8 l
Effective piston area Sd: 38,5 cm²
Dynamically moved mass Mms: 2,8 g
Force factor Bxl: 4,15 Tm
Connections: 5,1 x 0,5 mm (+) ; 2,8 x 0,5 mm (?)
