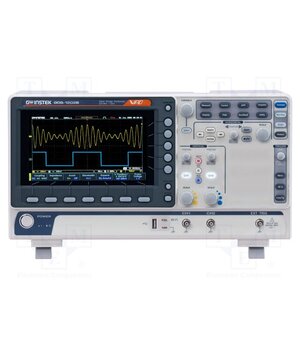

GDS-1202B Oscilloscope: digital; Ch: 2; 200MHz; 1Gsps; 10Mpts; colour,LCD 7"

• Measuring instrument features — X-Y operation mode
• Standard equipment — mains cable
• —
• Measuring instrument features — automatic measurement of many parameters
• Standard equipment — oscilloscope probe (1 per channel)
• —
• Measuring instrument features — measurements by means of cursors
• —
• —
• —
• Input impedance — 1MΩ/16pF
• Manufacturer — GW INSTEK
• Sampling — 1Gsps
• Kind of display used — LCD 7"
• —
• —
• Band — 200MHz
• —
• Display resolution — 800x480
• —
• Dimensions — 384x208x127.3mm
• —
• Interface — USB
• —
• Measuring instrument features — background noise filter
• —
• Measuring instrument features — protocols analyse: I2C, SPI, RS232/UART, CAN, LIN
• —
• —
• —
• Kind of display used — colour
• —
• Number of channels — 2
