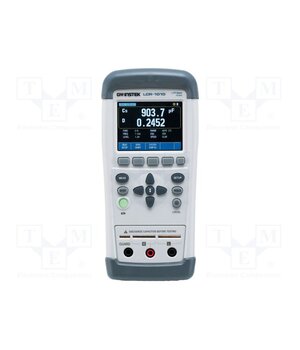

LCR-1010 LCR meter; touch screen,LCD TFT 2,8"; (50000); 50mΩ÷10MΩ

• Capacitance measuring range — 1pF…50mF
• Resistance measuring range — 50mΩ…10MΩ
• Measurement frequency — 10kHz
• Inductance measuring range — 500nH…1kH
• —
• —
• Measurement — equivalent series resistance (ESR)
• —
• Standard equipment — soft case
• Measurement — capacitance
• Kind of display used — touch screen
• Kind of display used — LCD TFT 2,8"
• Measuring instrument features — AUTO LCR function
• Measurement — phase angle θ
• —
• Measurement — dissipation factor D
• —
• Manufacturer — GW INSTEK
• Standard equipment — user's manual
• Measurement — resistance
• —
• Measurement — inductance
• Display parameters — (50000)
• Type of meter — LCR meter
• Measuring instrument features — HOLD function
• Measuring instrument features — zeroing function
• —
• Measuring instrument features — automatic power-off
• —
• —
• —
• —
• Standard equipment — cable LCR-205
• Measuring instrument features — sorting mode
• Standard equipment — USB C / USB A cable
• —
• Measuring instrument features — autoranging
• Standard equipment — cable LCR-101
• Measurement — quality factor Q
• Dimensions — 90x195x41mm
