Metal Mounting Bracket for DIN Rail, R99-12
Code IDET07- Weight 55.00g
E-shop price: 1,70 €
| Amount: | 10+ | 20+ |
| Price: | 1,55 | 1,53 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (10) | |
| Shop in Vilnius | Item available (4) | |
| Shop in Kaunas | Item available (2) | |
Description
R99-12 Fixed Buckle Snap Clip Clamp Mounting 35mm DIN Rail

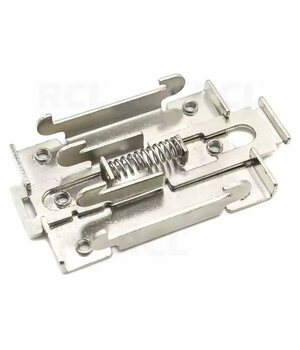

The R99-12 is a metal DIN rail mounting bracket / snap clip clamp designed for installing solid state relays (SSR), control modules or other compact electrical components onto a standard 35 mm DIN rail. It provides a simple and reliable way to mount SSR relays inside electrical panels, automation cabinets and control boxes.
This accessory is especially useful when the device does not include an integrated DIN rail mount or when a compact snap-on mounting solution is required.
🔧 Main Features
- ✅ Designed for standard 35 mm DIN rail mounting
- ✅ Suitable for single-phase solid state relays
- ✅ Works as a mounting adapter / fixed buckle plate
- ✅ Snap clip design for quick rail installation
- ✅ Metal construction for stable mechanical support
- ✅ Nickel-plated surface for improved corrosion resistance
- ✅ Compact solution for control cabinets and electrical panels
- ✅ Convenient for relay mounting, replacement and maintenance

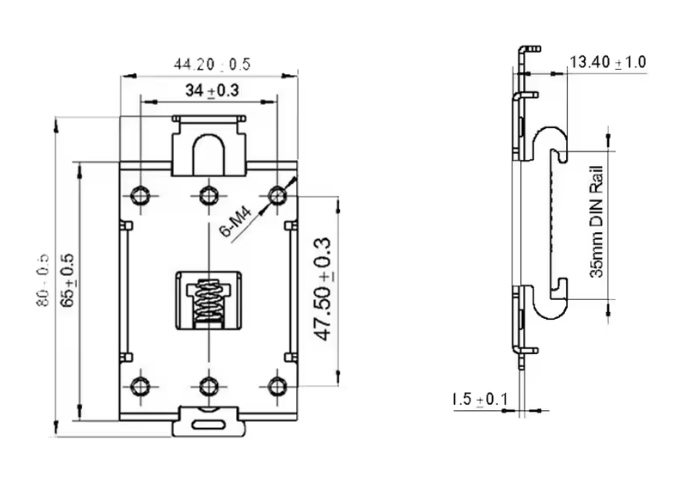

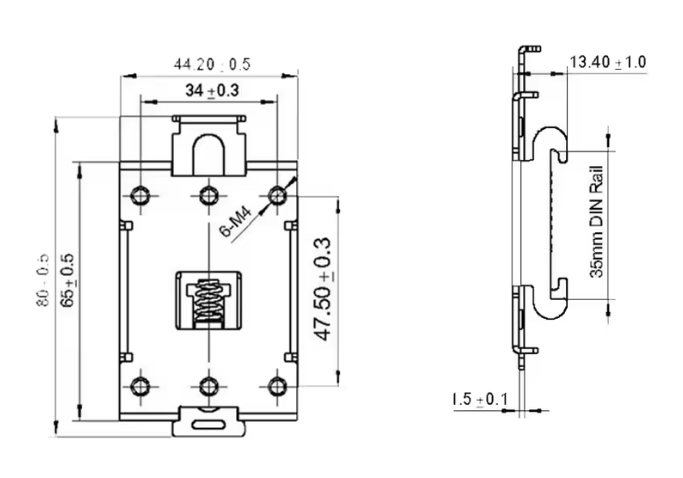

⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Model | R99-12 |
| Product type | DIN rail mounting bracket / snap clip clamp |
| Function | Mechanical mounting of SSR relay or compact electrical component |
| Rail compatibility | Standard 35 mm DIN rail |
| Mounting method | Snap-on / fixed clamp mounting |
| Material | Metal, cold-rolled plate / steel |
| Surface treatment | Nickel plated |
| Manufacturing process | Stamping |
| Application | Electrical panels, automation cabinets, SSR relay mounting |
| Compatibility | Commonly used with single-phase SSR relays; Omron version is intended for G3NA series |
| Electrical function | None – mechanical mounting accessory only |
🧩 Applications
The R99-12 mounting clip is used in automation, heating control, motor control, lighting control, temperature regulation and other systems where a solid state relay or compact module must be securely mounted on a DIN rail.
Typical applications include:
- Electrical distribution panels
- Automation control cabinets
- Solid state relay installation
- Heating element control circuits
- Industrial control systems
- Temperature control systems
- Compact electronics projects
🛠️ Installation

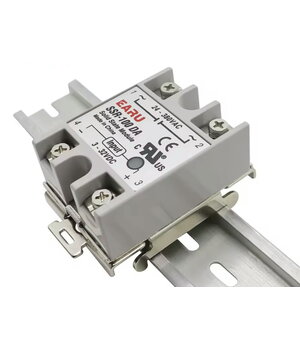

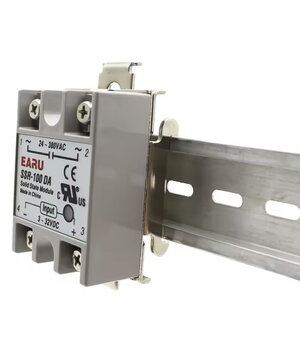

The bracket is attached to the SSR relay or compatible device and then clipped onto a standard 35 mm DIN rail. This allows fast installation, neat panel layout and convenient replacement or relocation of the component when required.
📌 Notes
- DIN rail is usually not included.
- SSR relay is usually not included.
- Check the mounting hole compatibility of the relay before installation.
- This is a mechanical accessory and has no current, voltage or power switching rating.
