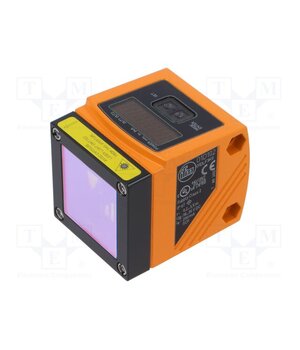

O1D102 Sensor: laser; distance; Range: 200mm÷3.5m; 18÷30VDC; 59x42x52mm

• Number of pins — 5
• Supply voltage — 18V…30V
• Operating temperature — -10°C…60°C
• Supply voltage AC — 18V AC…30V AC
• Supply voltage DC — 18V DC…30V DC
• Measurement frequency — 0Hz…4Hz
• —
• Kind of sensor — distance
• Range — 200mm...3.5m
• IP rating — IP67
• Additional functions — IO-Link (COM2)
• Output configuration — PNP / NO / NC + 4...20mA
• Body material — zinc die-cast
• —
• —
• —
• Type of sensor — laser
• Manufacturer — IFM ELECTRONIC
• Connection — M12
• Body dimensions — 59x42x52mm
• —
• —
