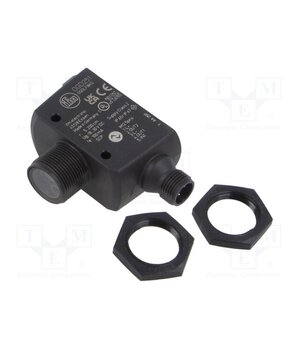

OGD251 Sensor: laser; distance; Range: 50mm÷2m; 18÷30VDC; ABS,PBT,PPSU

• Number of pins — 5
• Operating temperature — -25°C…50°C
• Supply voltage AC — 18V AC…30V AC
• Supply voltage DC — 18V DC…30V DC
• Measurement frequency — 60Hz
• —
• Body material — ABS
• Kind of sensor — distance
• IP rating — IP67
• Additional functions — IO-Link (COM2)
• Body material — PPSU
• —
• —
• —
• IP rating — IP65
• Type of sensor — laser
• Manufacturer — IFM ELECTRONIC
• Output configuration — PNP/NPN 2x NO/NC + 4...20mA/0...10V
• Switch housing — rectangular with M18 thread
• Range — 50mm...2m
• Connection — M12
• Body dimensions — 61.7x22.5x45.2mm
• —
• Body material — PBT
• —
