Fluxgel MULTIFIX 450-01 10cc, 8ml
Code ILF08/ST- Weight 0.00g
E-shop price: 25,95 €
| Amount: | 2+ | 3+ |
| Price: | 24,91 | 23,69 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (3) | |
| Shop in Kaunas | Item available (1) | |
Description

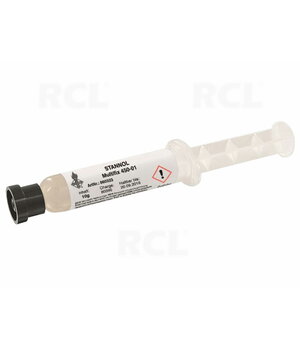

🧪 MULTIFIX 450-01 Fluxgel 10cc, 8ml (STANNOL)
MULTIFIX 450-01 is a resin-based, no-clean, tacky flux gel developed specifically for electronics rework and repair. Supplied in a 10cc syringe (8 ml), it enables precise, repeatable application for SMD rework, pad/tack preparation, and localized soldering operations.
✅ Key benefits
- 🧼 No-Clean formulation: residues typically do not require cleaning (process-dependent).
- 🧂 Halide-free: halide content none.
- 🧷 Tacky gel: stays where applied; supports spot application.
- 🖨️ Good printability & dispensability: suitable for manual and automatic dispensing.
- 🧊 Fast-drying residues: become hard and non-sticky.
⚙️ Technical parameters
| Parameter | Value |
|---|---|
| Product type | Flux gel (resin-based) |
| Intended use | Rework & repair; manual/automatic dispensing |
| Standards / classification | EN 61190-1-1 REL0, DIN EN 29454 1.2.3.C (DIN 8511 F-SW 32) |
| Acid value | 65–75 mg KOH/g |
| Viscosity | 450–650 Pa·s |
| Halide content | none |
| Water content | < 0.5% |
| Density (at 20 °C) | 0.82 g/cm³ |
| Flash point (closed crucible) | 93 °C |
| Max. soldering temperature | ≤ 350 °C |
| Solvent evaporation / non-sticky film | heat flux > 100 °C |
| Reliability tests | DIN 8527 surface resistance change — pass; corrosion — pass; copper mirror test — pass |
| Standard packaging range | 5cc & 10cc syringes (others on request) |
| Shelf life | 6 months (proper storage, originally sealed container) |
| This item | 10cc syringe, 8 ml |
Source: STANNOL Technical Data Sheet (Issue 2026-01-06) and Safety Data Sheet (reviewed 2025-01-31).
🛠️ Application notes
- 🎯 Apply a sufficient amount manually or using a compressed-air dispenser.
- 🔥 Keep soldering temperature at or below 350 °C.
- 🌡️ To evaporate the solvent and obtain a non-sticky film, ensure the flux is heated above 100 °C.
- 🧽 If cleaning is required by the process (e.g., coating, optics, special requirements), remove residues with a suitable flux cleaner recommended for resin-based residues.
⚠️ Safety summary
- ⚠️ May cause skin irritation and serious eye irritation (H315, H319).
- 🧤 Use protective gloves, 👓 safety glasses; ensure ventilation / fume extraction during soldering.
- 👶 Keep out of reach of children.
📦 Typical use cases
- SMD/SMT rework and component replacement.
- Targeted fluxing of pads, leads, connectors.
- Precision dispensing where controlled activation and dry, non-sticky residues are desired.
Note: values are typical and not a specification (per the manufacturer’s TDS). ```
