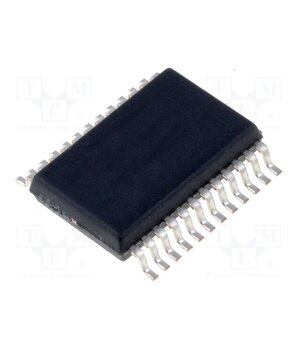

IR2114SSPBF IC: driver; IGBT half-bridge; high-/low-side,gate driver; SSOP24

• Power — 1.5W
• Supply voltage — 10.4V…20V
• Output current — -1.5A…1A
• Supply voltage AC — 10.4V AC…20V AC
• Operating temperature — -40°C…125°C
• Supply voltage DC — 10.4V DC…20V DC
• Turn-on time — 440ns
• Turn-off time — 440ns
• Voltage class — 600V…1.2kV
• —
• —
• Manufacturer — INFINEON TECHNOLOGIES
• Type of integrated circuit — driver
• —
• Kind of integrated circuit — high-/low-side
• —
• Mounting — SMD
• —
• —
• Kind of integrated circuit — gate driver
• —
• Topology — IGBT half-bridge
• —
• Number of channels — 2
• Case — SSOP24
