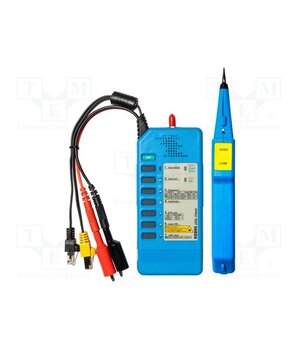

KE3150 Tester: network; MultiTest; 350VAC,500VDC

• Kind of connector — crocodile clip
• Measuring instrument features — ETHERNET link test
• Standard equipment — case
• Type of tester — network
• Detection — place of cable failure
• Detection — trace cable length up to 15km (no load)
• Standard equipment — transmitter
• Max. voltage — 500V DC
• —
• —
• —
• Kind of connector — RJ11
• Receiver dimensions — 220x40x25mm
• Measuring instrument features — resistance test through frequency change
• Transmitter dimensions — 150x65x26mm
• —
• Measuring instrument features — low battery indicator
• —
• Detection — trace distance to cable/wire up to 60cm
• Kind of connector — RJ45
• Measuring instrument features — visual fault location (VFL)
• Kind of connector — headphone jack
• Measuring instrument features — LAN port finder
• —
• Manufacturer — Kurth Electronic
• Max. voltage — 350V AC
• Measuring instrument features — automatic power-off
• Measuring instrument features — DSL testing function
• Standard equipment — receiver
• —
• —
• Kind of connector — universal 2.5mm ferrule for FO connectors
• Measuring instrument features — data port test with HUB-Blink
• Connection — RJ45
• Protection — anti-overvoltage OVP
