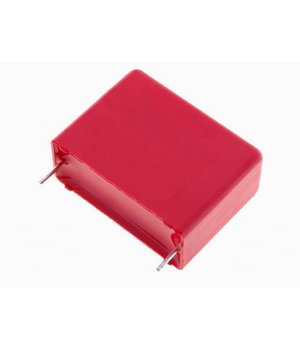

FILM CAPACITOR MKP10 10 nF 1000V Wima
Code KPM410/9WS4- Manufacturer Wima
- Weight 1.40g
E-shop price: 0,85 €
| Amount: | 5+ | 10+ |
| Price: | 0,73 | 0,55 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (18) | |
| Shop in Vilnius | Item available (14) | |
| Shop in Kaunas | Item available (16) | |
Item description
- Type of capacitor polypropylene
- Capacitance 10nF
- Terminal pitch 10mm
- Tolerance ±10%
- Capacitor application high frequency circuits, impulse circuits
- Body dimensions 5x11x13mm
- Climate class 55/100/56
- Operating temperature -55...100°C
- Enclosure material self-extinguishing, UL94V-0 -Pulse resistance 2.1kV/μs
- Mounting THT -Max. operating voltage 600V AC, 1000V DC
