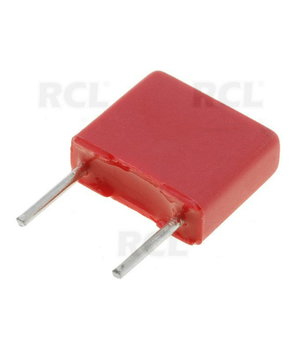

FILM CAPACITOR MKS2 0.1uF 63VAC 100VDC ±10% RM5
Code KPM510/06W- Manufacturer Wima
- Weight 0.30g
E-shop price: 0,40 €
| Amount: | 10+ | 25+ |
| Price: | 0,35 | 0,2845 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (57) | |
| Shop in Vilnius | Item available (55) | |
| Shop in Kaunas | Item available (9) | |
Item description
Capacitor type polyester
Capacitor application DC applications, blocking, filtering, decoupling, timing circuits
Capacitance 100nF
Operating voltage 100V DC, 63V AC
Terminal pitch 5mm
Tolerance ±10%
Body dimensions 2.5 x 6.5 x 7.2mm
Climate class 55/100/21
Leads dimensions len. 6mm
Operating temperature -55...100°C
Capacitors series MKT
Enclosure material self-extinguishing, UL94V-0
Pulse resistance 20V/μs
