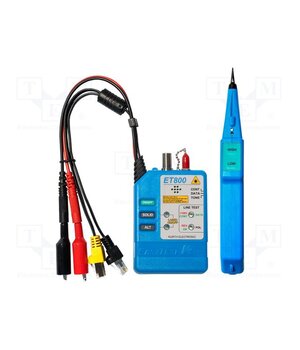

KE801 Tester: wire localizer; EasyTest; 120VAC; 0.25m

• —
• Test — circuit continuity
• Additional functions — torch
• Standard equipment — case
• Measuring instrument features — 6 frequencies selectable: SOLID: 1000, 2600, 577.5 Hz and ALT: 1000/800, 2600/1900, 577.5 Hz
• —
• Measuring instrument features — voltage detector
• Detection — trace cable length up to 15km (no load)
• Standard equipment — transmitter
• —
• —
• Connector — RJ11
• Test — wiring RJ45
• Receiver dimensions — 220x40x25mm
• Test — wiring RJ11
• —
• —
• Measuring instrument features — low battery indicator
• —
• Max. voltage — 120V AC
• Measuring instrument features — visual fault location (VFL)
• Transmitter dimensions — 68x96x25mm
• —
• Detection — reversed connection
• —
• Manufacturer — Kurth Electronic
• Connector — crocodile clip
• Measuring instrument features — automatic power-off
• Standard equipment — receiver
• Measuring instrument features — ISDN signal detection with probe
• —
• Application — telecommunication
• Connector — universal 2.5mm ferrule for FO connectors
• Measuring instrument features — auto polarity
• Connector — headphone jack
• Measuring instrument features — data port test with HUB-Blink
• Detection — discontinuities and short circuits in conductors
• Measuring instrument features — acoustic and optical indication of signal presence and strength
• Connection — RJ45
• Measuring instrument features — identifies state of operating telephone line
• Connector — RJ45
• Application — IT
• Type of tester — wire localizer
• Protection — anti-overvoltage OVP
