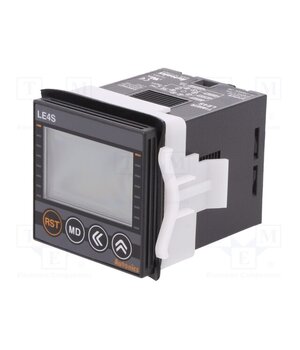

LE4S Automation module: timer; Range: 0,001s÷9999h; SPDT; 24÷240VAC

• Number of pins — 8
• Supply voltage — 24V…240V
• Operating temperature — -10°C…55°C
• Supply voltage AC — 24V AC…240V AC
• Supply voltage DC — 24V DC…240V DC
• Number of operation modes — 10
• Counter operation modes — ON and OFF delay
• The additional control inputs — INHIBIT
• Kind of output — SPDT
• —
• Electrical connection — round socket
• Mounting — on panel
• —
• Mounting hole diameter — 45x45mm
• Counter operation modes — pulse after a specified time
• Counter operation modes — delayed switching off
• The additional control inputs — START
• Type of module — timer
• IP rating — IP20
• Counter operation modes — symmetrical cyclical operation swithing on first with two independent times T1 and T2
• —
• Mounting — socket
• Kind of display used — LCD
• Output 1 electrical parameters — 30V DC / 5A
• Type of automation module — timer
• —
• Counter operation modes — symmetrical cyclical operation pause first with two independent times T1 and T2
• The additional control inputs — RESET
• Manufacturer — AUTONICS
• —
• Counter operation modes — delayed switching on
• —
• Output 1 electrical parameters — 250V AC / 5A
• —
• —
• Counting range — 0,001s...9999h
• Counter operation modes — with the control contact S
