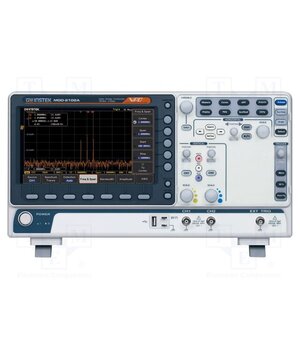

MDO-2102A Oscilloscope: digital; MDO; Ch: 2; 100MHz; 2Gsps (in real time)

• Supply voltage — 100V…240V
• Supply voltage AC — 100V AC…240V AC
• Supply voltage DC — 100V DC…240V DC
• Measurement memory — 24
• Interface — LAN
• Measuring instrument features — 20 sets memory
• Measuring instrument features — mathematical functions: addition, subtraction, division, multiplication and FFT
• Standard equipment — mains cable
• —
• —
• Standard equipment — oscilloscope probe (1 per channel)
• Measuring instrument features — segmented memory function
• —
• —
• —
• Measuring instrument features — support I2C, SPI, UART, CAN, LIN BUS trigger and decoding functions
• Interface — USB device
• —
• Standard equipment — test leads
• Standard equipment — cable BNC-BNC x2
• —
• Standard equipment — test leads with crocodile clips
• —
• Measuring instrument features — EF function - electrical field detecion
• Interface — USB 2.0 host
• —
• Interface — Go/NoGo BNC
• Input impedance — 1MΩ/16pF
• —
• Additional functions — spectrum analyzer
• Manufacturer — GW INSTEK
• —
• —
• Band — 100MHz
• Measuring instrument features — Y-T, X-Y, ROLL operation mode
• Kind of display used — LCD TFT 8"
• —
• —
• —
• Display resolution — 800x480
• Sampling — 2Gsps (in real time)
• —
• —
• Dimensions — 384x208x127.3mm
• —
• —
• —
• —
• —
• —
• —
• —
• —
• Number of channels — 2
• Measuring instrument features — mask testing
• —
