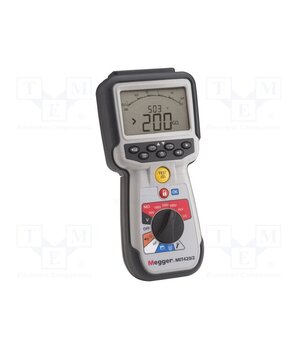

1004-739 Meter: insulation resistance; LCD; R range: 0.01÷1000kΩ; 1nF÷10uF

• DC voltage measuring range — 0V DC…600V DC
• Capacitance measuring range — 1nF…10μF
• AC voltage measuring range — 10mV AC…600V AC
• Resistance measuring range — 10Ω…1MΩ
• Test voltage — 1000
• Insulation resistance measuring ranges — 200000000000
• —
• —
• —
• Type of meter — insulation resistance
• Standard equipment — soft case
• Measurement — capacitance
• Measurement — frequency
• —
• Standard equipment — test leads
• —
• Measurement — AC voltage
• Measuring instrument features — polarization index (PI) and dielelectric absorption ratio (DAR)
• —
• Input impedance — 0.25MΩ
• —
• —
• —
• —
• Standard equipment — manufacturer's calibration certificate
• Kind of display used — LCD
• Measurement — resistance
• Measuring instrument features — time testing
• —
• —
• —
• —
• Measurement — insulation resistance
• Standard equipment — test probe x1
• —
• —
• Conform to the norm — CAT IV 600V
• Measuring instrument features — automatic power-off
• —
• —
• Conform to the norm — EN 61010
• —
• —
• —
• —
• IP rating — IP54
• Body dimensions — 228x108x63mm
• —
• Continuity test — 10mΩ...99.9Ω
• —
• —
• —
• Manufacturer — MEGGER
• Conform to the norm — CAT III 1000V
• Measurement — DC voltage
• Measurement — continuity
• Frequency measuring range — 15...400Hz
