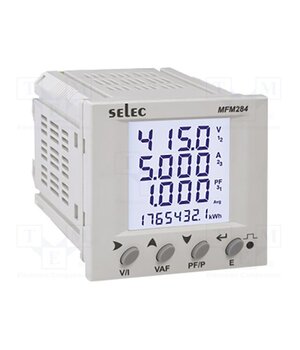

MFM284-C-CE Meter: network parameters; on panel; digital,mounting; LCD

• Operating temperature — -10°C…55°C
• Supply voltage AC — 85V AC…265V AC
• Supply voltage DC — 85V DC…265V DC
• Maximum current — 6A
• Operating frequency — 45Hz…65Hz
• AC current measuring range — 10kA
• AC voltage measuring range — 100V AC…500kV AC
• Kind of network — three-phase
• Mounting hole diameter — 67x67mm
• —
• Kind of network — 4-wire
• Manufacturer — SELEC
• Mounting — on panel
• —
• Interface — RS485
• Measurement — AC voltage
• —
• Dimensions (W x H x D) — 72x72mm
• True effective value measurement — True RMS
• Measurement — apparent power
• Kind of display used — LCD
• —
• Measurement — energy
• Measurement — active power
• —
• Type of meter — network parameters
• Measurement — reactive power
• Kind of network — 3-wire
• Display parameters — 4-digit
• Kind of measurement — indirect with 5A current transformer
• —
• —
• Kind of meter — digital
• —
• Measurement — THD
• Kind of meter — mounting
• Measurement — AC current
• —
• Communictions protocol — Modbus RTU
