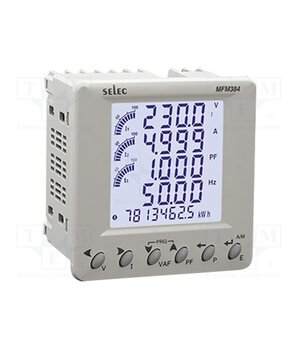

MFM384-C-CU Meter: network parameters; on panel; digital,mounting; LCD

• Supply voltage — 100V…240V
• Supply voltage AC — 100V AC…240V AC
• Operating temperature — -10°C…55°C
• Supply voltage DC — 100V DC…240V DC
• Maximum current — 6A
• Operating frequency — 45Hz…65Hz
• AC current measuring range — 10kA
• AC voltage measuring range — 100V AC…500kV AC
• Kind of network — three-phase
• —
• Kind of network — 4-wire
• Manufacturer — SELEC
• Mounting — on panel
• —
• Interface — RS485
• Mounting hole diameter — 91.5x91.5mm
• —
• —
• Measurement — phase angle θ
• True effective value measurement — True RMS
• Measurement — apparent power
• Kind of display used — LCD
• —
• Measurement — energy
• Measurement — active power
• —
• Type of meter — network parameters
• Measurement — reactive power
• Kind of network — 3-wire
• Display parameters — 8 digits
• Display parameters — 4-digit
• Kind of measurement — indirect with 5A current transformer
• —
• Kind of meter — digital
• Dimensions (W x H x D) — 96x96mm
• —
• Measurement — THD
• —
• Kind of meter — mounting
• Measurement — AC current
• —
• Communictions protocol — Modbus RTU
