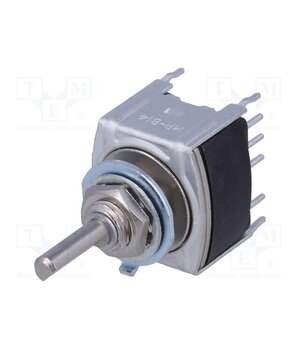

MRB14B Switch: rotary; Pos: 3; SP3T; 0.01A/28VAC; 0.01A/28VDC; Ø16x17mm

• Operating temperature — -10°C…70°C
• Contact resistance — 10mΩ
• Electrical life — 10kcysles
• Mechanical durability — 30kcysles
• Min. insulation resistance — 100MΩ
• —
• Manufacturer — NKK SWITCHES
• —
• Body dimensions — Ø16x17mm
• —
• —
• Contact material — beryllium copper
• —
• Stable positions number — 3
• —
• Contacts configuration — SP3T
• —
• DC contacts rating @R — 0.01A / 28V DC
• Contact plating — gold-plated
• AC contacts rating @R — 0.01A / 28V AC
• Leads — for soldering
• Switch of type — rotary
