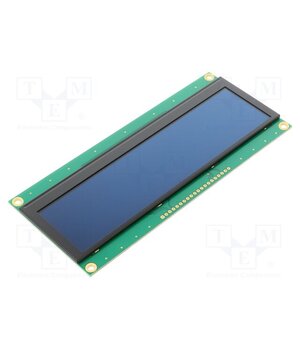

NHD-5.5-25664UCG3 Display: OLED; graphical; 5.5"; 256x64; Dim: 147.2x64.15x6.8mm

• Number of pins — 20
• Contacts pitch — 2.54mm
• Operating temperature — -40°C…85°C
• Supply voltage AC — 3.3V AC
• Supply voltage DC — 3.3V DC
• Dimensions — 147.2x64.15x6.8mm
• Manufacturer — NEWHAVEN DISPLAY INTERNATIONAL
• Window dimensions (H x W) — 135.65x33.89mm
• Interface — 8bit
• —
• Interface — 8080
• —
• —
• Kind of display — graphical
• Type of pin configuration — 1x20
• Display resolution — 256x64
• Screen size — 5.5"
• Colour — green
• Type of display — OLED
• Touchpad — none
• Interface — parallel
• Interface — 6800
• Interface — 3/4-wire SPI
• Kind of controller — SSD1322
• —
