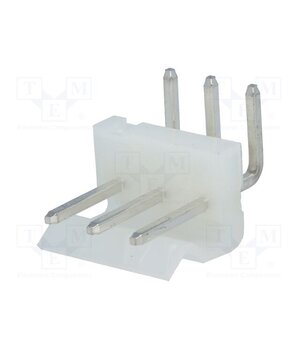

A5081WR-3P Connector: wire-board; socket; male; PIN: 3; angled 90°; 7A; 250V

• Rated voltage — 250V
• Number of pins — 3
• Contacts pitch — 5.08mm
• Operating temperature — -25°C…85°C
• Max. contact resistance — 10mΩ
• Current rating — 7A
• Connector — socket
• Body material — polyamide
• —
• —
• Kind of connector — male
• Flammability Rating — UL94V-2
• Contact plating — tinned
• Spatial orientation — angled 90°
• —
• Contact material — brass
• Electrical mounting — THT
• —
• Type of pin configuration — 1x3
• —
• —
• —
• Type of connector — wire-board
• Manufacturer — JOINT TECH
