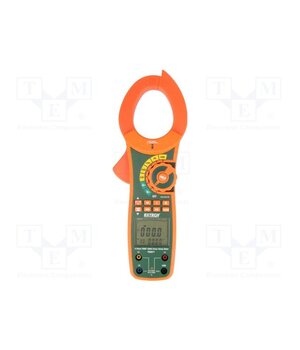

PQ2071 Meter: power; pincers type; LCD; (9999); I AC: 100mA÷1kA; 522g; 55mm

• AC voltage measuring range — 100mV AC…750V AC
• AC current measuring range — 100mA…1kA
• Max. diameter of measured cable — 55mm
• Measuring instrument features — 99 sets memory
• Standard equipment — case
• Display parameters — (9999)
• —
• Dimensions — 292x95x38mm
• Standard equipment — test leads
• Type of meter — power
• Measurement — AC voltage
• —
• Measurement — phase angle θ
• —
• Standard equipment — test leads with crocodile clips
• Measurement — apparent power
• Kind of display used — LCD
• —
• Measurement — power factor
• Conform to the norm — CE
• Measurement — active power
• —
• Measuring instrument features — MIN/MAX function
• Software — included
• Measurement — reactive power
• —
• Conform to the norm — CAT IV 600V
• Measuring instrument features — built-in non-contact voltage detector with LED alert
• Measuring instrument features — automatic power-off
• —
• Conform to the norm — EN 61010
• —
• Kind of meter — pincers type
• Manufacturer — EXTECH
• —
• Standard equipment — cable for connection with PC
• —
• Interface — USB
• —
• Illumination — yes
• Measurement — AC current
• —
• Conform to the norm — CAT III 1000V
• —
• —
• Measuring instrument features — HOLD function
• —
