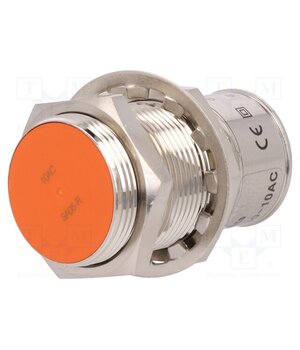

PRCM30-10AC Sensor: inductive; Range: 0÷10mm; 85÷264VAC; OUT: 2-wire NC; M30

• Number of pins — 4
• Supply voltage — 85V…264V
• Operating temperature — -25°C…70°C
• Supply voltage AC — 85V AC…264V AC
• Supply voltage DC — 85V DC…264V DC
• Overall length — 63.8mm
• Switching frequency max — 20Hz
• —
• —
• —
• IP rating — IP67
• Switch housing — M30
• Connection — M12 male
• Range — 0...10mm
• Body material — brass
• Type of sensor — inductive
• —
• —
• —
• —
• —
• —
• —
• —
• Manufacturer — AUTONICS
• Range — 0...10mm
• Output configuration — 2-wire NC
• —
• —
• Plating material — nickel
• —
• —
