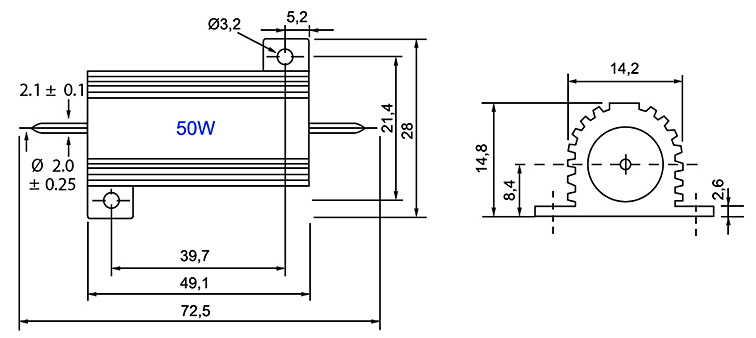

RESISTOR WIREWOUND 0.22R 50W ±5%, 28x49x15mm, with heatsink
Code R0022R5- Weight 25.00g
E-shop price: 4,90 €
| Amount: | 4+ | 8+ |
| Price: | 4,36 | 4,18 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
50W wirewound resistor in aluminium housing.
Load rating :
- heat sink area 535cm2 - 50W at 25°C
- without heat sink - 25°C - 12W ; 70°C - 9.6W
Maximum voltage : 1250 V
Temperature coefficient : ± 100 ppm/°C
Operating temperature : - 55°C to + 200°C
