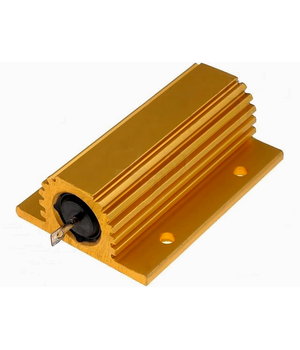

WIREWOUND RESISTOR 1R 100W with radiator
Code R010R9- Weight 100.00g
E-shop price: 15,90 €
| Amount: | 3+ | 5+ |
| Price: | 15,10 | 14,63 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Resistor type: wirewound with heat sink
Mounting: screwed
Maximum operating voltage: 1,9kV
Housing dimensions: 65,5 x 47,5 x 26mm
Operating temperature: -55...250°C
Temperature coefficient: 50ppm/°C
Features require an additional cooling radiator
Wiring: solderable
Mounting hole pitch: 37 x 35mm
Number of mounting holes: 4
Power without radiator: 50W
Recommended radiator: thickness 3mm, surface area of 99500 mm2
