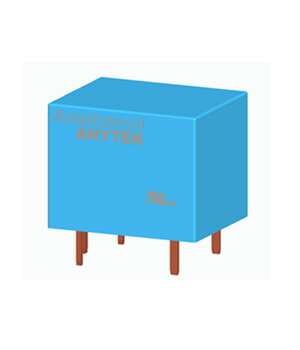

Relay 5V, 15A/24V DC, 12A/250V AC, 360mW, 19x16x16mm, AMPHENOL
Code RL0515A- Manufacturer AMPHENOL ANYTEK
- Weight 15.00g
E-shop price: 1,95 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,74 | 1,64 | 1,53 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (10) | |
| Shop in Vilnius | Item available (10) | |
| Shop in Kaunas | Item available (10) | |
Item description
Contacts configuration: SPDT
Contact current max.: 15A
AC contacts rating @R: 12A / 250V AC
DC contacts rating @R: 15A / 24V DC
Mounting: PCB
Coil resistance: 70Ω

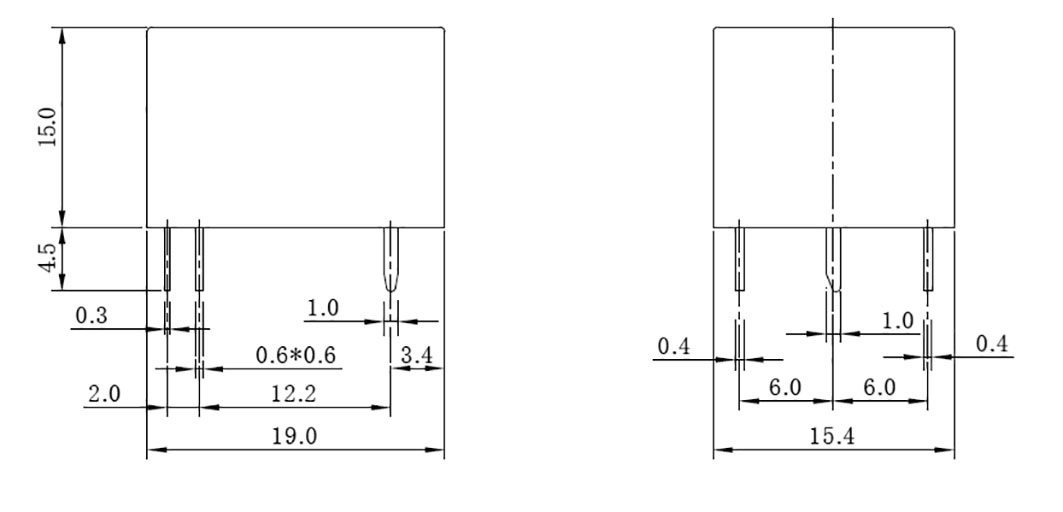

Body dimensions: 15,4x19x15mm
Coil power consumption: 360mW
Operating temperature: -30...85°C
Contact material: silver alloy
