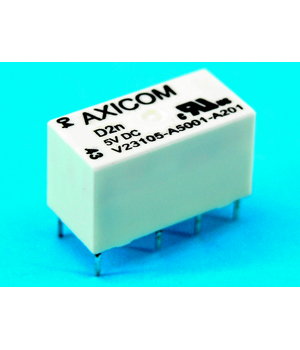

RELAY D2N05 5V 150 mW, 0.5A/125VAC 1A/30VDC, 2-pair contact (DPDT), TE Connectivity
Code RLD2N05- Manufacturer TE Connectivity
- ID code 8-1393792-5
- Weight 5.00g
E-shop price: 7,50 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 6,90 | 6,58 | 6,50 |
| 7,28 | 7,28 | 7,28 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (1) | |
Description
Contacts configuration: DPDT
AC contacts rating: 0.5A / 125V AC
DC contacts rating: 1A / 30V DC
Contact current max.: 3A
Switched voltage: max. 220V DC, max. 250V AC
Mounting: PCB
Coil resistance: 167Ω
Coil voltage min.: 4V DC
Coil voltage max.: 13V DC
Operate time: 10ms
Release time: 10ms
Coil power consumption: 150mW
Mechanical durability: 150000000 cycles
Operating temperature: -25...70°C
Contact resistance: 100mΩ
Switching capacity: 60W, 125VA
Terminal pitch: 5mm

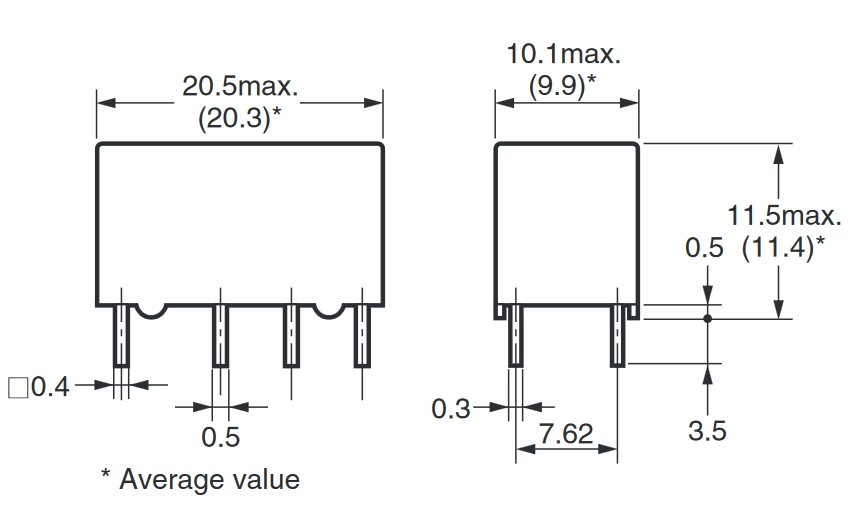

Body dimensions: 20.3x10.1x11.43mm
