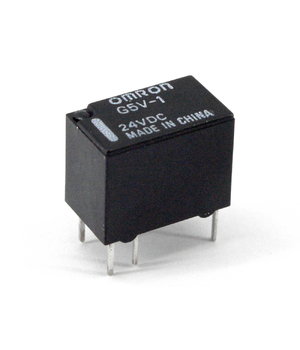

RELAY G5V1-24 24V 150mW , 1A / 24V DC 0.5A / 125V AC, (SPDT), OMRON
Code RLG5V124- Manufacturer OMRON
- ID code G5V-1 24VDC
- Weight 3.00g
E-shop price: 1,90 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,71 | 1,57 | 1,47 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (10) | |
| Shop in Vilnius | Item available (7) | |
| Shop in Kaunas | Item available (13) | |
Description
Contacts configuration : SPDT
Switched voltage: max. 60V DC, max. 125V AC
Mounting: PCB
Coil resistance: 3.84kΩ
Coil power consumption: 150mW
Coil current: 6.25mA
Operating temperature: -30...70°C
Contact resistance: 100mΩ
Terminal pitch: 2.54mm
Body dimensions: 12.5x7.5x10mm
