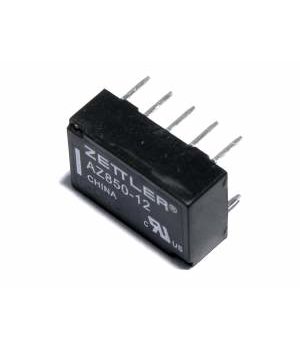

RELAY 12V 142mW, 1A/30V 0.5A/125VAC, (DPDT), DIP10
Code RLP12- Weight 7.00g
E-shop price: 2,20 €
| Amount: | 5+ | 10+ |
| Price: | 1,98 | 1,81 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (1) | |
| Shop in Kaunas | Item is not available (0) | |
Item description
Contacts configuration: DPDT
Switched voltag: max. 220V DC, max. 250V AC
Mounting: PCB
Coil resistance: 1028Ω
Coil voltage min.: 8.4V DC
Coil voltage max.: 30V DC
Operate time: 2ms
Release time: 1ms
Coil power consumption: 142mW
Mechanical durability: 100000000 cycles
Operating temperature: -55...90°C
Contact resistance: 70mΩ
Case: DIP10
Switching capacity: 30W 50VA
Soldering temperature: 250°C
Terminal pitch: 2.54mm
Relay features: single coil
Test voltage: 1.5kV

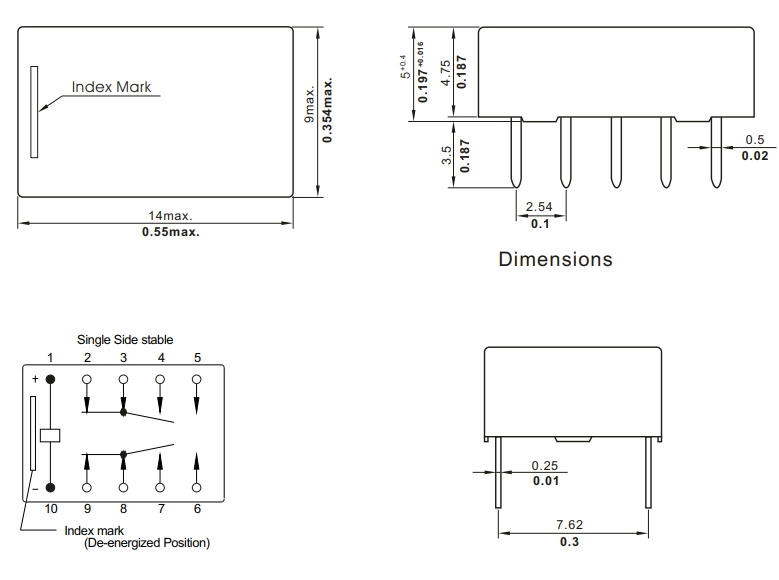

Body dimensions: 14x9x5mm
