Thermostat - Thermo Protector KSD9700 5A 250VAC, Topen: 80°C, Tclos: 65°C, contact: NC (normally closed)
Code RLTM080- Weight 3.00g
E-shop price: 1,00 €
| Amount: | 10+ | 20+ |
| Price: | 0,88 | 0,85 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (7) | |
| Shop in Kaunas | Item available (4) | |
Item description
Fully Automated KSD9700 Series Thermal Switch - 80° Threshold is an inline thermal temperature controller. This switch reacts only to thermal affects and requires no electricity to operate.
KSD9700 series heat protector is made up of heat conducting metal cover, bottom plate, reed, moving contact, seat base, static contact, double-mental act components, if the current increases or the environment temperature rise and temperature reaches the preset value, the bi-metal component will work and release the contact to shut off the circuit,and by contrast, if the device cools down to the safe temperature, the contact point will reset automatically.
Normally closed (NC) thermal switch means that the contacts of thermal switch normally remain closed. When temperature increases to the set value, the contacts would open and cut the circuit OFF.
Specifications:
Type: Normally Closed (NC)
Temperature: 80°C
Tolerance: ±5°C
Max voltage 250V
Max current 5A (resistive load)
Resistance of Contact: ≤50mΩ(original state)
Resistance of Insulated: >100MΩ(DC500V normality)
Test Voltage : ≥ 1250V/1min(nomality)
Material: Metal case

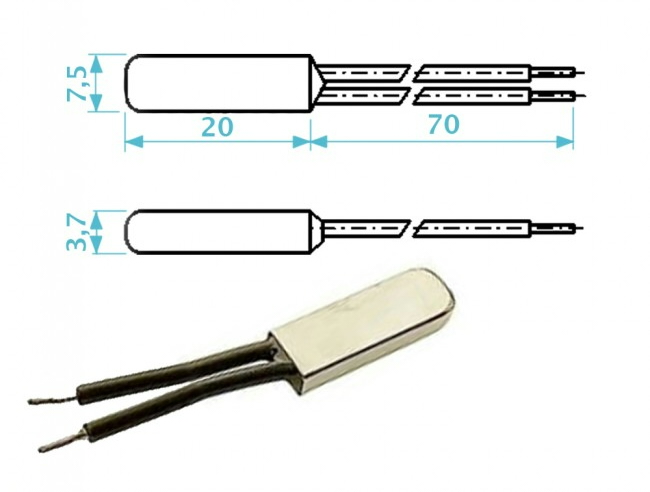

Dimensions: 18 x 7 x 4mm
Wires length: 70mm
