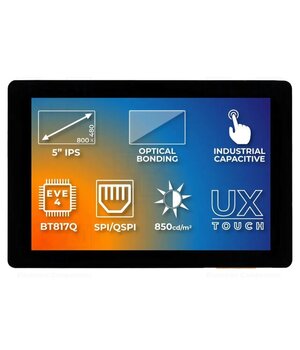

SM-RVT50HQBNWC00 Display: TFT; 5"; 800x480; Illumin: LED; Dim: 136x92.8x10.99mm; RGB

• Number of pins — 20
• Supply voltage — 3V…3.6V
• Operating temperature — -20°C…70°C
• Supply voltage AC — 3V AC…3.6V AC
• Supply voltage DC — 3V DC…3.6V DC
• Tape pitch — 500μm
• Screen size — 5"
• Kind of display — matrix IPS
• Family — EVE4
• —
• —
• —
• Kind of package — separately
• Version — air bonding
• —
• Type of display — TFT
• Contrast — 1000:1
• Colour — RGB
• Interface — QSPI
• Kind of display — graphical
• —
• Window dimensions (H x W) — 108x64.8mm
• No. of colours — 16.7M
• Type of pin configuration — 1x20
• Kind of package — cardboard packaging
• Illumination — LED
• Display resolution — 800x480
• Interface — SPI
• Touchpad — capacitive
• Display features — anti-glare glass
• Version — uxTouch
• Manufacturer — Riverdi
• Kind of connector — RIBUS
• Dimensions — 136x92.8x10.99mm
• —
• Kind of controller — BT817Q
