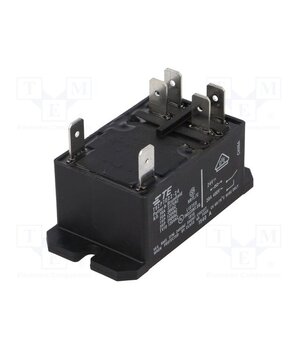

7-1393211-1 Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 30A; max.600VAC

• Operating temperature — -40°C…85°C
• Rated coil voltage DC — 24V DC
• Contact current max. — 30A
• Mechanical durability — 5Mcysles
• Coil power consumption — 4W
• Coil resistance — 350Ω
• —
• Switched voltage — max. 600V AC
• —
• Mounting — on panel
• —
• —
• Relay variant — power
• Switched voltage — max. 28V DC
• AC contacts rating @R — 30A / 277V AC
• DC contacts rating @R — 20A / 28V DC
• —
• Contacts configuration — DPST-NO
• —
• —
• Type of relay — electromagnetic
• Contact material — AgCdO
• Manufacturer — TE Connectivity
• Body dimensions — 65.85x34.54x26.42mm
• Leads — connectors
• Rated coil voltage — 24V DC
