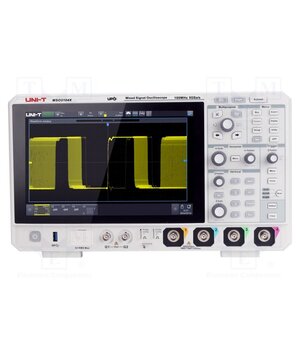

MSO2104X Oscilloscope: digital; Ch: 4; 100MHz; 5Gsps; 100Mpts; 2n÷1ks/div

• Supply voltage AC — 100V AC…240V AC
• Supply voltage DC — 100V DC…240V DC
• Interface — LAN
• Measuring instrument features — mathematical functions: addition, subtraction, division, multiplication and FFT
• Standard equipment — mains cable
• —
• Measuring instrument features — automatic measurement of many parameters
• Interface — HDMI
• Measuring instrument features — split screen function
• —
• Interface — USB Host
• Standard equipment — expansion option MSO2000X-BND
• Standard equipment — expansion option MSO2000X-PWR
• Interface — USB device
• Kind of display used — touch screen
• —
• —
• Input impedance — 1MΩ/16pF
• —
• Measuring instrument features — arbitrary waveform generator
• —
• —
• —
• Standard equipment — USB cable
• Band — 100MHz
• Display resolution — 1280x800
• —
• —
• Standard equipment — BNC cable
• Interface — AUX
• —
• Dimensions — 378x218x120mm
• —
• —
• —
• Standard equipment — expansion option MSO2000X-AWG
• —
• —
• Manufacturer — UNI-T
• Sampling — 5Gsps
• —
• Standard equipment — test probe x4
• —
• Interface — VGA
• —
• Kind of display used — LCD TFT 10,1"
• Number of channels — 4
