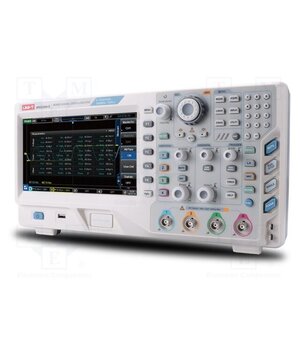

MSO2204-S Oscilloscope: digital; Ch: 4; 200MHz; 2 Gs/s; 56Mpts; LCD TFT 8"

• Supply voltage AC — 100V AC…240V AC
• Supply voltage DC — 100V DC…240V DC
• Interface — LAN
• —
• Measuring instrument features — mathematical functions: addition, subtraction, division, multiplication and FFT
• Standard equipment — mains cable
• —
• —
• Measuring instrument features — automatic measurement of many parameters
• Measuring instrument features — split screen function
• —
• Interface — USB Host
• Interface — USB device
• —
• —
• —
• Standard equipment — expansion option MSO/UPO2000-AUTO
• —
• Dimensions — 370x185x115mm
• —
• —
• —
• Input impedance — 1MΩ/16pF
• Measuring instrument features — arbitrary waveform generator
• —
• —
• —
• Standard equipment — USB cable
• Kind of display used — LCD TFT 8"
• Standard equipment — expansion option MSO/UPO2000-EMBD
• Band — 200MHz
• —
• Display resolution — 800x480
• —
• Sampling — 2 Gs/s
• —
• Standard equipment — BNC cable
• Interface — AUX
• —
• —
• —
• —
• —
• —
• —
• Manufacturer — UNI-T
• —
• Interface — VGA
• —
• —
• Standard equipment — expansion option MSO2000-S-BODE
• —
• Standard equipment — test probe x2
• Number of channels — 4
• —
