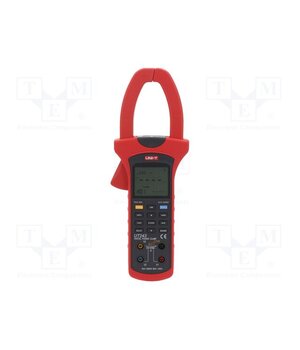

UT243 Meter: power; pincers type; LCD; (10000); True RMS; 40÷80Hz; 50mm

• AC current measuring range — 1kA
• AC voltage measuring range — 600V AC
• Measurement memory — 999
• Max. diameter of measured cable — 50mm
• —
• —
• Measurement — frequency
• —
• Conform to the norm — CAT III 600V
• —
• Type of meter — power
• Measurement — AC voltage
• Measurement — phase angle θ
• True effective value measurement — True RMS
• Standard equipment — hard case
• Measuring instrument features — indicates phase sequence
• Standard equipment — test leads ( 4pcs.)
• —
• —
• Measurement — apparent power
• Kind of display used — LCD
• Measurement — harmonics
• Measuring instrument features — low battery indicator
• Measurement — power factor
• Standard equipment — aligator clip x4
• —
• Measurement — energy
• Measurement — active power
• —
• Standard equipment — USB cable
• —
• Measuring instrument features — MIN/MAX function
• —
• Measurement — reactive power
• —
• Measuring instrument features — automatic power-off
• —
• Conform to the norm — EN 61010
• Frequency measuring range — 40...80Hz
• Dimensions — 303x112x39mm
• —
• Kind of meter — pincers type
• Display parameters — (10000)
• Interface — USB
• —
• Measuring instrument features — testing on 1 and 3-phase systems
• Manufacturer — UNI-T
• —
• Illumination — yes
• Measurement — AC current
• —
• Measuring instrument features — autoranging
• Measuring instrument features — HOLD function
