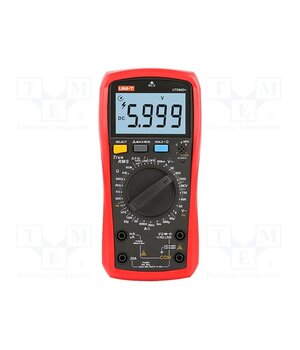

UT890D+ Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV

• Operating temperature — 0°C…40°C
• Capacitance measuring range — 100mF
• DC current measuring range — 20A
• AC current measuring range — 20A
• DC voltage measuring range — 1kV DC
• AC voltage measuring range — 750V AC
• Resistance measuring range — 60MΩ
• —
• —
• —
• Measurement — capacitance
• —
• —
• Measurement — frequency
• Dimensions (W x H x D) — 88x183x56mm
• Conform to the norm — CAT III 600V
• Measurement — DC current
• Standard equipment — test leads
• —
• —
• Continuity test — <10Ω
• Measurement — AC voltage
• —
• —
• Measurement — transistors' gain hFE
• —
• True effective value measurement — True RMS
• —
• —
• Measuring instrument features — overflow indicator
• Kind of display used — LCD
• Measuring instrument features — low battery indicator
• —
• Frequency measuring range — 10...10MHz
• Measurement — resistance
• —
• —
• —
• —
• Conform to the norm — CAT II 1000V
• —
• —
• —
• —
• Measuring instrument features — MIN/MAX function
• —
• Measuring instrument features — HOLD function
• Measuring instrument features — contactless voltage detector
• —
• Type of meter — digital multimeter
• —
• —
• —
• —
• Measuring instrument features — automatic power-off
• —
• Conform to the norm — EN 61010
• Measuring instrument features — REL function
• —
• —
• —
• —
• Manufacturer — UNI-T
• —
• —
• Illumination — yes
• Continuity test — acoustic indication
• —
• —
• —
• Display parameters — (6000)
• —
• Measurement — AC current
• —
• —
• —
• —
• —
• —
• Measurement — DC voltage
• Measurement — continuity
• —
• —
• —
• —
