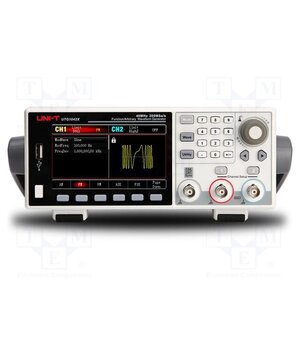

UTG1022X-PA Laboratory generator: arbitrary, function; 20MHz; LCD TFT 4,3"

• Supply voltage — 100V…240V
• Supply voltage AC — 100V AC…240V AC
• Supply voltage DC — 100V DC…240V DC
• Maximum waveform frequency — 20MHz
• —
• Standard equipment — mains cable
• Standard equipment — BNC cable - crocodile clip
• Standard equipment — BNC-BNC cable
• Waveform frequency range — 1µHz...400kHz (ramp waveform)
• Dimensions — 215x103x316mm
• Kind of display used — LCD TFT 4,3"
• Measuring instrument features — 4 Watt power output, <100kHz
• —
• Waveforms — sinus
• Waveforms — noise
• Waveforms — ramp
• —
• Waveform frequency range — 1µHz...20MHz (sinus waveform)
• Waveforms — arbitrary
• —
• Waveforms — square
• Sampling — 200Msps
• Display resolution — 480x272
• Standard equipment — USB cable
• Waveforms — impulse
• —
• —
• Measuring instrument features — 200 runs memory
• —
• Interface — USB
• —
• Manufacturer — UNI-T
• Waveform frequency range — 1µHz...5MHz (arbitrary waveform)
• Waveforms — DC
• Type of laboratory generator — arbitrary, function
• —
• Waveform frequency range — 1µHz...10MHz (rectangular waveform)
• Waveform frequency range — 1µHz...10MHz (pulse waveform)
• —
• —
• —
• Number of channels — 2
