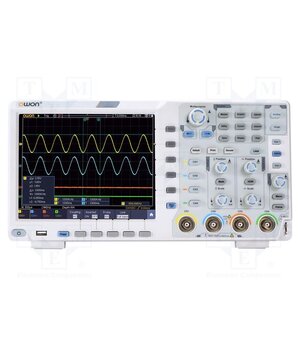

XDS3064E Oscilloscope: digital; Ch: 4; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS

• Supply voltage — 100V…240V
• Supply voltage AC — 100V AC…240V AC
• Supply voltage DC — 100V DC…240V DC
• Measurement memory — 100
• Display resolution — 800x600
• Software — LabVIEW
• Interface — LAN
• Kind of connector — USB
• —
• Measuring instrument features — mathematical functions: addition, subtraction, division, multiplication and FFT
• Standard equipment — mains cable
• —
• —
• Standard equipment — oscilloscope probe (1 per channel)
• —
• —
• Touchpad — yes
• Connection — USB
• Measuring instrument features — measurements by means of cursors
• Connectors for the country — Europe
• —
• —
• Band — 60MHz
• —
• —
• Standard equipment — user's manual
• Sampling — 1Gsps
• Kind of connector — RJ45
• —
• Measuring instrument features — AUTOSET function for setting display parameters (time base, gain)
• Manufacturer — OWON
• —
• —
• Standard equipment — USB cable
• Kind of display used — LCD TFT 8"
• —
• Body dimensions — 340x177x90mm
• —
• —
• Input impedance — 1MΩ/15pF
• Standard equipment — trimmer
• —
• Measuring instrument features — protocols analyse: I2C, CAN, SPI, RS232/UART
• —
• —
• Interface — USB
• —
• —
• —
• Additional functions — frequency meter
• Connector — VGA + AV
• —
• —
• —
• —
• Interface — VGA
• Connection — RJ45
• —
• —
• Kind of connector — VGA
• —
• —
• —
• Number of channels — 4
• —
