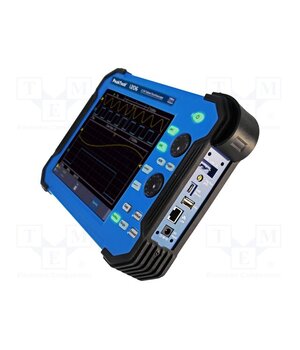

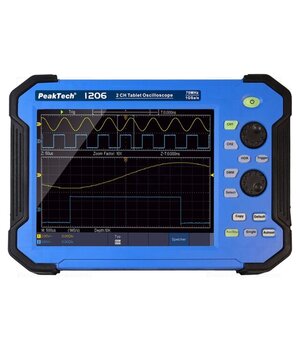

P 1206 Handheld oscilloscope; 70MHz; 8bit; LCD 8"; Ch: 2; 1Gsps; 40pts

• Display resolution — 800x600
• Standard equipment — oscilloscope probe x2
• Manufacturer — PEAKTECH
• Measuring instrument features — X-Y operation mode
• Interface — LAN
• Measuring instrument features — mathematical functions: addition, subtraction, division, multiplication and FFT
• —
• —
• —
• Measuring instrument features — measurements by means of cursors
• —
• —
• Additional functions — multimeter
• —
• —
• —
• —
• —
• Standard equipment — user's manual
• Sampling — 1Gsps
• Standard equipment — power supply
• —
• Measuring instrument features — AUTOSET function for setting display parameters (time base, gain)
• —
• Software — included
• —
• —
• —
• Band — 70MHz
• —
• Input impedance — 1MΩ/15pF
• Conform to the norm — CAT II 400V
• —
• Conform to the norm — EN 61010
• Standard equipment — BNC cable
• —
• —
• —
• Interface — USB
• —
• —
• Body dimensions — 270x191x48mm
• —
• —
• —
• Measuring instrument features — FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris
• Kind of display used — LCD 8"
• Number of channels — 2
• —
• —
