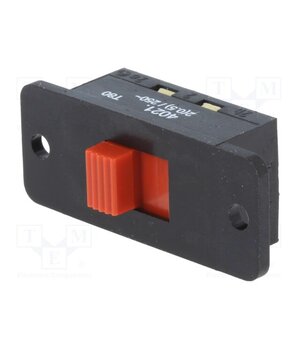

04021.0101 Switch: slide; Pos: 2; DPDT; Leads: for soldering; Rinsul min: 100MΩ

• Operating temperature — -20°C…80°C
• Max. contact resistance — 100mΩ
• Mechanical durability — 10kcysles
• Min. insulation resistance — 100MΩ
• Contact plating — silver plated
• —
• —
• —
• Manufacturer — Marquardt
• Stable positions number — 2
• Switches Features — raised actuator
• Switch of type — slide
• —
• Flammability Rating — UL94V-2
• Contacts configuration — DPDT
• —
• Contact material — copper alloy
• —
• Leads — for soldering
• —
