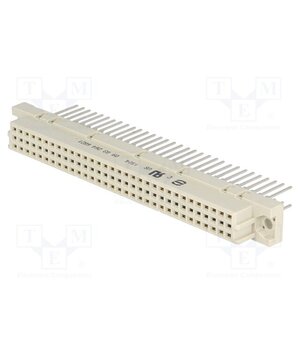

09032646821 Connector: DIN 41612; plug; female; PIN: 64; straight; 2A; a+c; 13mm

• Number of pins — 64
• Operating temperature — -55°C…125°C
• Mechanical durability — 400cysles
• Maximum current — 2A
• Lead length — 13mm
• Electrical mounting — wrapped connections
• —
• Type of connector — DIN 41612
• —
• —
• —
• Connector variant — type C
• —
• Kind of connector — female
• Contact plating — selectively gold plated
• Manufacturer — HARTING
• Connector pinout layout — a+c
• Flammability Rating — UL94V-0
• Enclosure material — thermoplastic
• Connector — plug
• —
• Spatial orientation — straight
