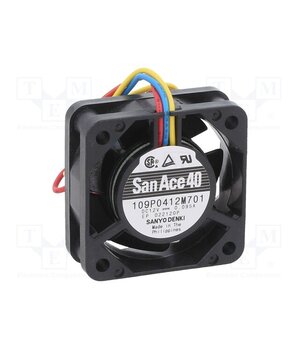

109P0412M701 Fan: DC; axial; 12VDC; 40x40x15mm; 9m3/h; 24dBA; ball; 6500rpm

• Operating voltage — 10.2V…13.8V
• Operating temperature — -20°C…70°C
• Supply voltage AC — 12V AC
• Fan efficiency — 9m³/h
• Noise level — 24dBA
• Power consumption — 1.14W
• Supply voltage DC — 12V DC
• Operating voltage DC — 10.2V DC…13.8V DC
• Current rating — 95mA
• Lead length — 320mm
• Min. insulation resistance — 10MΩ
• —
• —
• —
• —
• Enclosure material — plastic
• —
• Fan dimensions — 40x40x15mm
• Flammability Rating — UL94V-1
• —
• Kind of Bearing — ball
• Leads — leads x3
• —
• —
• Additional functions — reverse polarity protection
• —
• Additional functions — lock sensor
• —
• —
• Rotational rate/speed — 6500rpm
• —
• —
• —
• Manufacturer — SANYO DENKI
