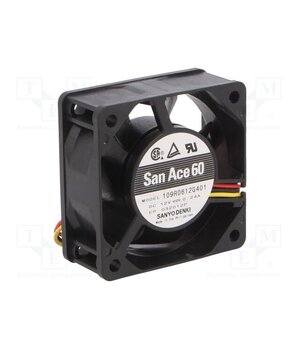

109R0612G401 Fan: DC; axial; 12VDC; 60x60x25mm; 46.8m3/h; 39dBA; ball; 5600rpm

• Operating voltage — 10.8V…13.2V
• Supply voltage AC — 12V AC
• Fan efficiency — 46.8m³/h
• Noise level — 39dBA
• Power consumption — 2.88W
• Operating temperature — -20°C…70°C
• Supply voltage DC — 12V DC
• Current rating — 240mA
• Operating voltage DC — 10.8V DC…13.2V DC
• Lead length — 300mm
• Min. insulation resistance — 10MΩ
• —
• —
• —
• Enclosure material — plastic
• —
• —
• Flammability Rating — UL94V-1
• —
• Kind of Bearing — ball
• Rotational rate/speed — 5600rpm
• Leads — leads x3
• —
• Fan dimensions — 60×60×25mm
• Additional functions — reverse polarity protection
• Additional functions — lock sensor
• —
• —
• —
• —
• —
• —
• Manufacturer — SANYO DENKI
• —
